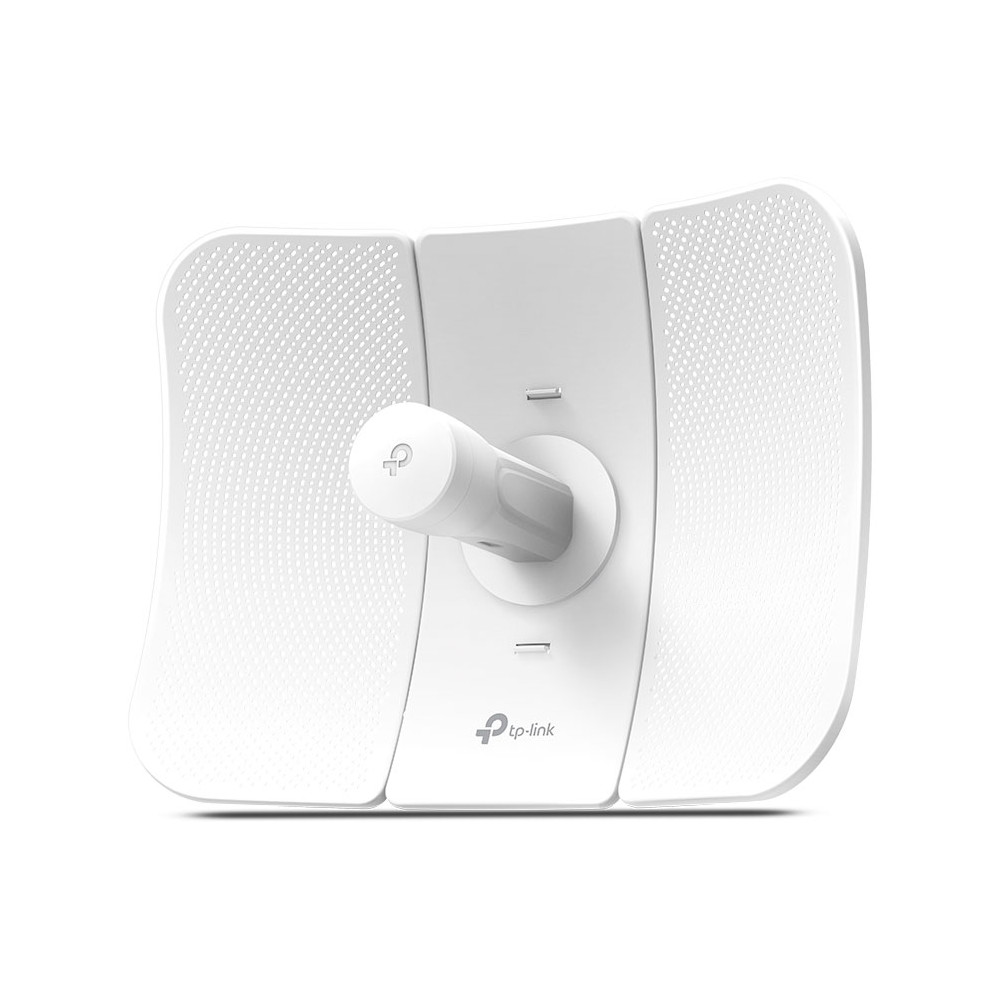

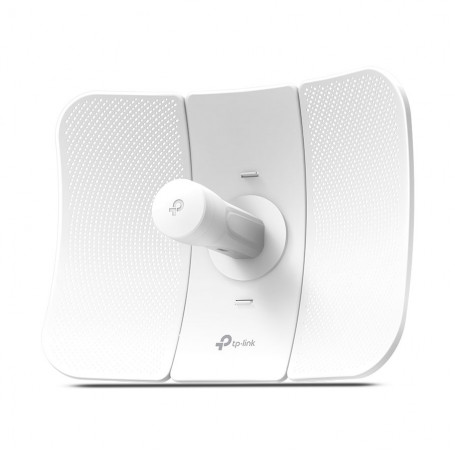

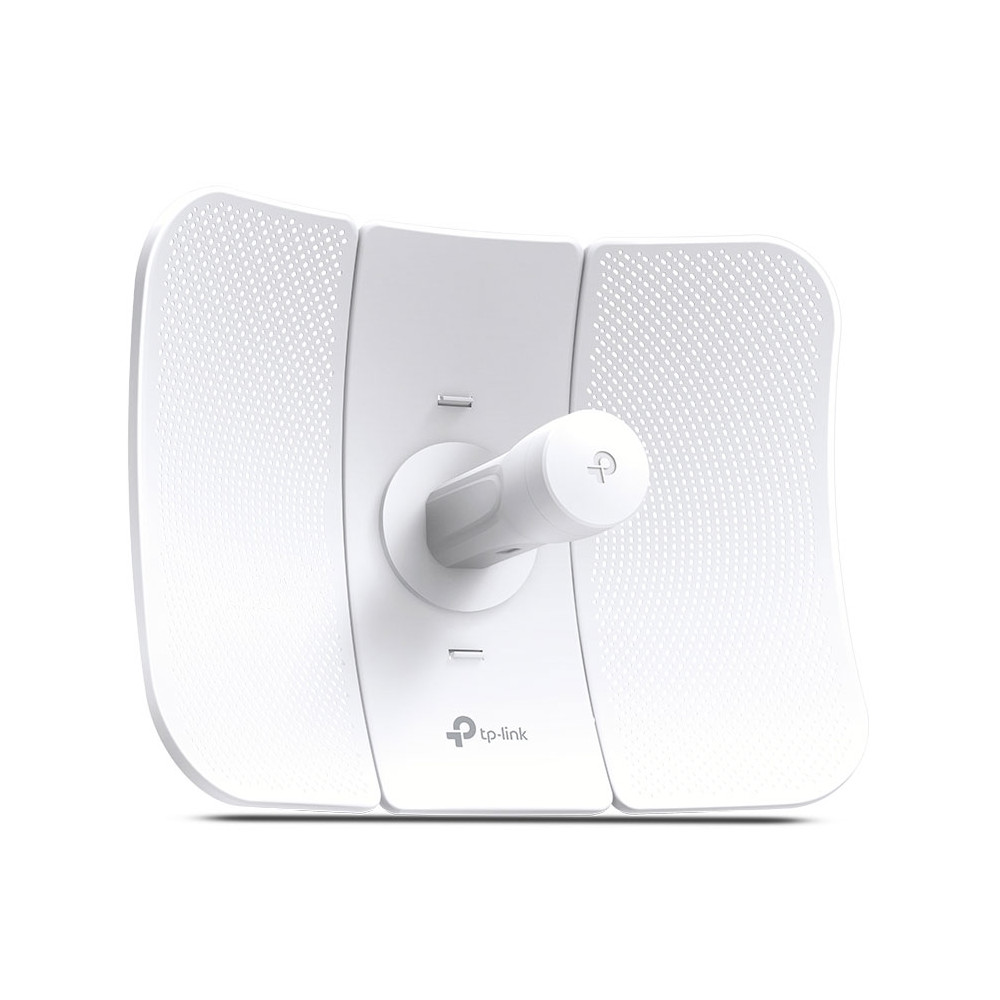

Pont WIFI extérieur longue portée 5 GHz AC 867 Mbps 23dBi TP-Link CPE710

Vitesse WiFi

5GHz 867Mbps

Up to 867 Mbps (80 MHz, Dynamic)
Up to 400 Mbps (40 MHz, Dynamic)
Up to 173.4 Mbps (20 MHz, Dynamic)

5.15–5.85 GHz

Puissance de transmission

27dBm

Pas à pas de 1dBm

20/40/80MHz

MIMO

2 x 2

Matériel

Qualcomm 750MHz CPU, MIPS 74Kc

128 MB DDR2 RAM, 16 MB Flash

1 Reset Button

1× 10/100/1000 Mbps Shielded Ethernet Port (Power + Data)
1× 10/100/1000 Mbps Shielded Ethernet Port (Data)

Passive Power over Ethernet via LAN (+4,5pins; -7,8pins)
Voltage range: 16-27V DC

Compatibilité

802.11a/n/ac

Gain de l'antenne

23dBi

9° (Azimut)/7° (Elévation)

Indice de protection

IP65

Protection contre la foudre

6kV

Alimentation électrique

Adaptateur PoE passif 24 V

Operating Temperature : -40℃~70℃
Storage Temperature : -40℃~70℃
Operating Humidity : 10%~90% non-condensing
Storage Humidity : 5%~95% non-condensing

Logiciel

Modes de fonctionnement

AP / Client / Routeur client AP (client WISP) / Mode routeur AP

WAN : Static/ Dynamic/ PPPoE
LAN : Static/ Dynamic/ DHCP
Forwarding : ALG/ UPnP/ Virtual Server/ Port Trigger
Security : SPI Firewall/ Ping Forbidden/ DoS Protection
Access Control
Static Routing
Bandwidth Control
IP & MAC Binding

Selectable Channel Width : 20/40/80MHz
Auto Channel Selection
Transmit Power Control
Dynamic Frequency Selection(DFS)
WDS Enable/ Disable
Security : WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption,
SSID Broadcast Enable/ Disable
Multi-SSID with VLAN Tagging(AP Mode only)
Distance/ ACK Timeout Setting
Wireless MAC Address Filter
Wireless Advanced : Beacon Interval/ RTS Threshold/ Fragmentation Threshold/ DTIM Interval/ AP Isolation/ Short GI/ Wi-Fi Multimedia
Long Range PtP

Analyseur de spectre

Oui

Outil de test de vitesse Iperf

Oui

Pharos Control pris en charge
(application de gestion de réseau central)

Oui
